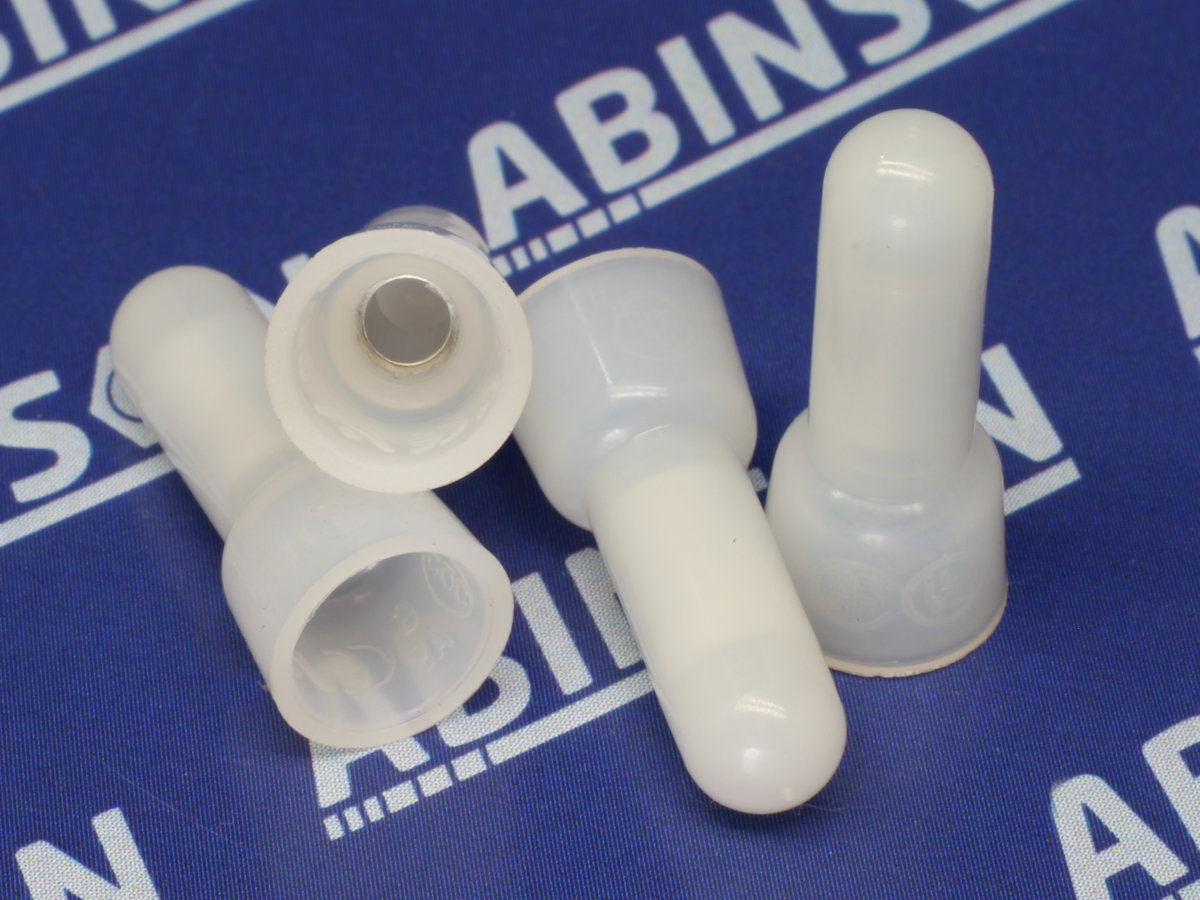

Closed End Wire Connector CE1
Closed end connectors are crimp-able for a quick, inexpensive, easy and permanent electrical connection of two or more wires. You simply insert your wires all the way into the closed end connector and press crimp.
Product Code/SKU:
15216
This product is currently not longer available for ordering. This page is made available for information only.
Specifications
Specifications for Closed End Wire Connector CE1
Dimensions Wire Range
0.5-1.75 mm
Dimensions d1
5 mm
Dimensions E
6 mm
Dimensions L
20.1 mm
d
2.4 mm
Dimensions D
6.4 mm
|
Dimensions |
|||||||
|---|---|---|---|---|---|---|---|
| P.Code | Wire Range mm |
d1 mm |
E mm |
L mm |
d mm |
D mm |
|
| 15216 | 0.5-1.75 | 5 | 6 | 20.1 | 2.4 | 6.4 | |
