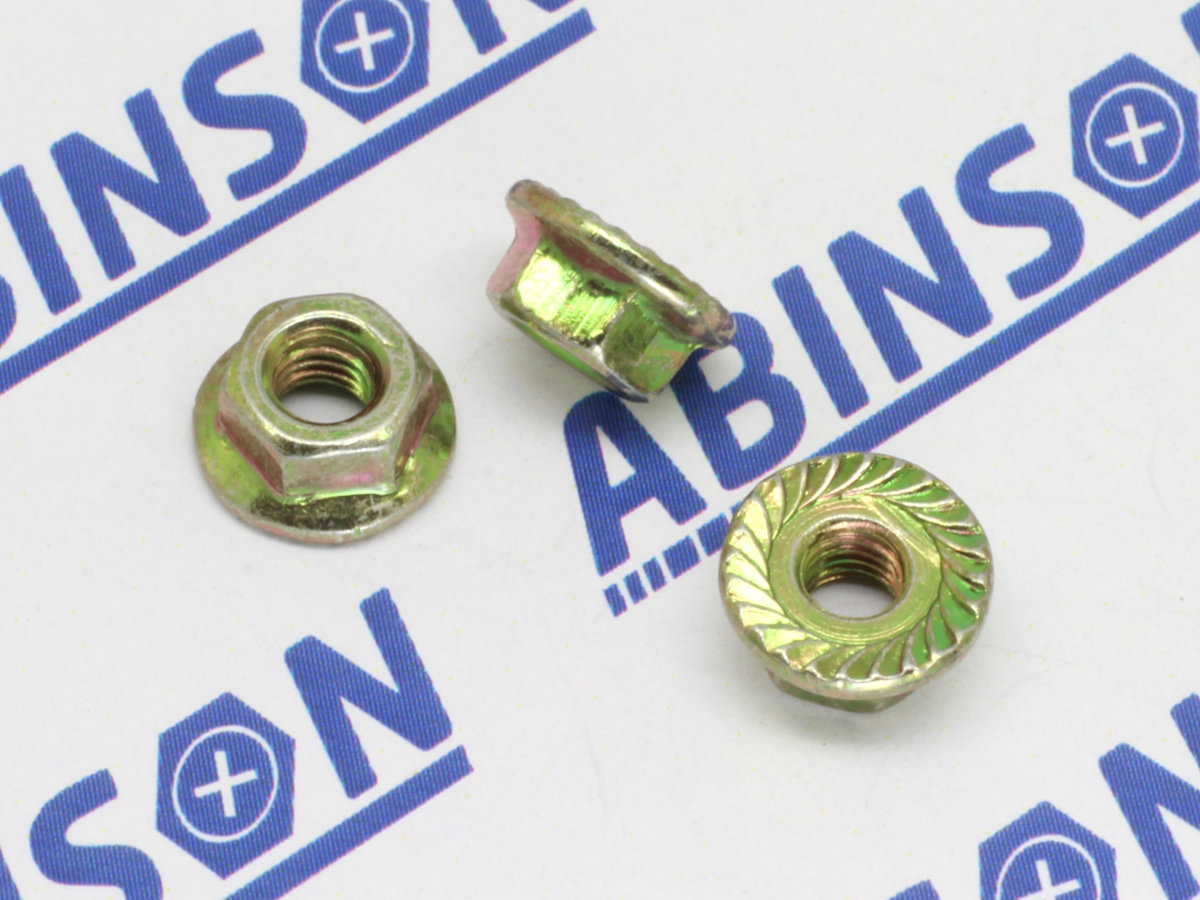

Flange Locknut M3 (3mm) x 0.5mm Nut Serrated Mild Steel MS Zinc Plated
Serrated Flange Locknuts have serrations on the underside of the flange preventing the nuts from loosening. Also known as collar nuts, they do not require a washer. Instead, the flange spreads the holding force across a wide area.
Product Code/SKU:
15028
This product is currently not longer available for ordering. This page is made available for information only.
Specifications
Specifications for Flange Locknut M3 (3mm) x 0.5mm Nut Serrated Mild Steel MS Zinc Plated
H-Height
3.7 mm
F-Flange Width
7.7 mm
Thread Pitch
0.5 mm
Material
Mild Steel
T-Flange Thickness
1 mm
W-Width
5.5 mm
Thread
3mm M3 mm
| P.Code | Material | Thread mm |
Thread Pitch mm |
W-Width mm |
F-Flange Width mm |
T-Flange Thickness mm |
H-Height mm |
|---|---|---|---|---|---|---|---|
| 15028 | Mild Steel | 3mm M3 | 0.5 | 5.5 | 7.7 | 1 | 3.7 |
